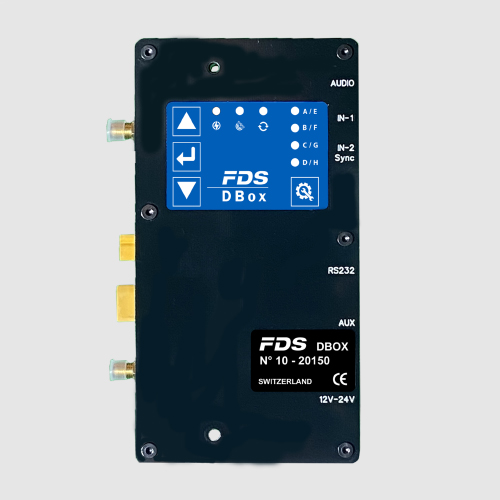

DBox (Display Box)

Extension for MLED display

728.00 HT

SKU: FDS-D10323 Categories: ,

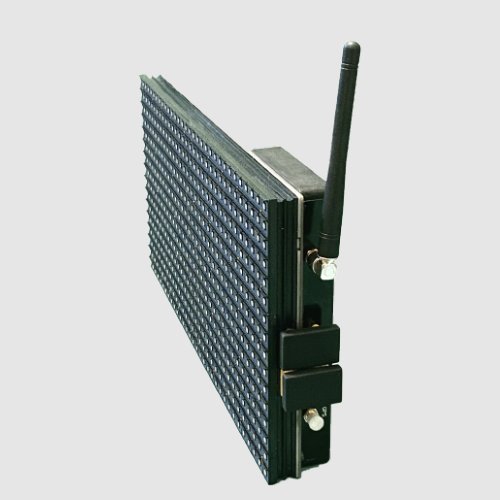

Successor of the MLED-CTRl, the DBox has been designed as an optional upgrade to our popular MLED modular LED display. It transforms the standard LED panel into a multi-function intelligent display suitable for all types of sports and events.
The DBox also integrates all the functionalities of a TBox and can replace it for timing with or without display.



We propose 6 modes of operation

  • User text mode (RS232/RS485 standard protocol)
  • Time / Date / temperature
  • Start-Finish
  • Speed trap
  • Counter
  • Start-Clock

Inputs

2 wired + 6 Wireless

Precision

1/10'000s

Time drift

(no GPS): 1 ppm @20°C / 2.5ppm (-20 to +60°C)

Wireless modules

BLE 5 & Radio 868Mhz – 920Mhz

Output protocols

FDS, TagHeuer, Alge, Seico

Ports

USB-C, RS232, RS485, Audio

Power

12V- 24V

Dimentions

16 x 9.5 x 2 cm

Weight

230g

Product Card

English (PDF 800KB)
Français (PDF 800KB)

User Manual

English (PDF 1MB)

Firmware

Firmware DBox

    TBox, DBox and WIRC/WINP pairing
    TBox/DBox GPS synchro
    DBox Firmware update
