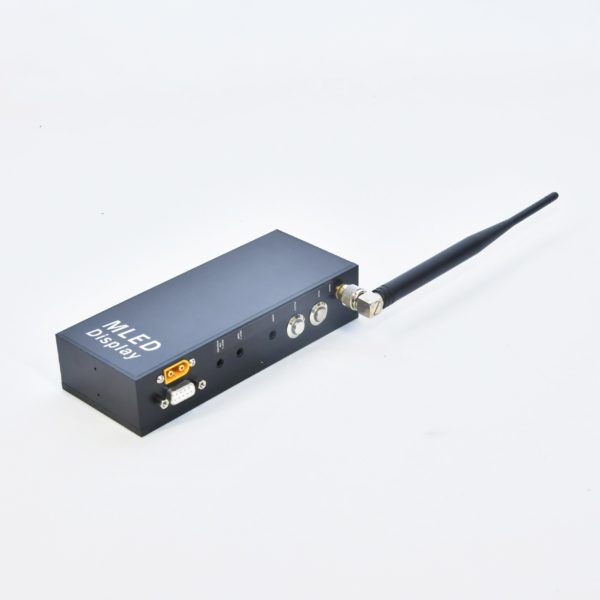

MLED-CTRL Box
€681.00 HT
Designed as an optional upgrade to our popular MLED modular LED display, the MLED-CTRL transforms the standard LED panel into a multi-function intelligent display suitable for all types of sports and events.
It integrates functionalities as Bluetooth, GPS synchro, WIRC compatible radio transceiver, digital temperature sensor reading input, audio line output and sync output for countdown applications, 2 wired time capture inputs.
We propose 6 modes of operation:
- User text mode (RS232/RS485 standard protocol)
- Time / Date / temperature
- Start-Finish
- Speed trap
- Counter
- Start-Clock
| Inputs | 2 wired + 2 Wireless |
|---|---|
| Precision | 1/10'000s |
| Time drift | (no GPS): 1 ppm @20°C / 2.5ppm (-20 to +60°C) |
| Wireless modules | BLE 5 & Radio 868Mhz – 920Mhz |
| Ports | RS232, RS485, Audio |
| Power | 12V- 24V |
| Dimentions | 16 x 6.5 x 3.5 cm |
| Weight | 280g |
