WIRC – Wireless photocells

An all-weather mini masterpiece of engineering, reliably and precisely detecting man or machine with ultimate precision.

432.00 HT

SKU: FDS-P10009 Category:

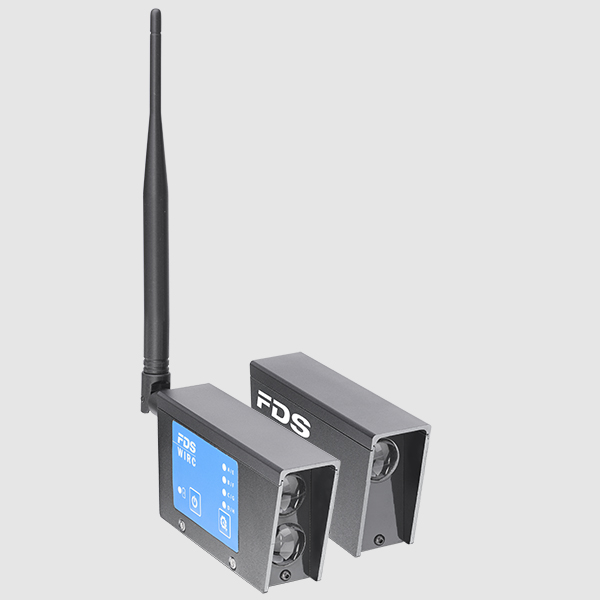

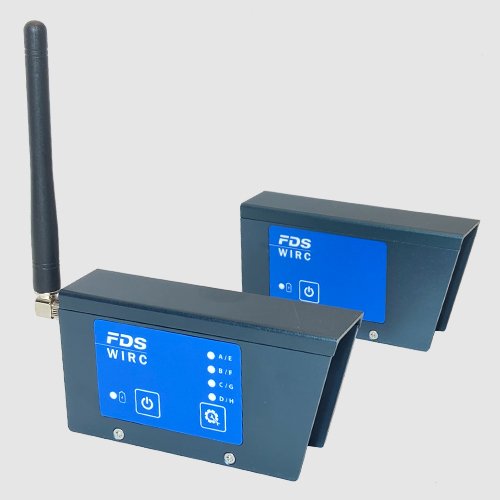

Smart and compact, the Infra-Red Wireless Photocells WIRC is the must-have equipment to complete your timing system. Its integrated design will simplify your installation, and ensure professional performances at competitive prices.
The Wireless Infra-Red Photocells detects and transmits impulses to the TBox-Radio or DBox using a bidirectional radio protocol. Wired connection to any timing devices can still be performed via a 3.5mm Jack connector located on the back.

Approved / Certified by


USB (power & data)
Jack 3.5mm (impulse output & RS232 input)




Li-Ion battery (> 150h)
External power via USB

Radio frequency

868MHZ / 915MHZ
6-8 Groups


12 x 6 x 2.8 cm



  • 1x WIRX_TX (IR transmitter)
  • 1x WIRC-RX (IR detector)
  • 1x USB Cable
  • 1x Antenna

Product Card

English (PDF 700KB)
Français (PDF 700KB)

User Manual

English (PDF 1.5MB)
Français (PDF 1.5MB)


Firmware WIRC-RX
Firmware WIRC-TX

    Power ON/OFF
    TBox, DBox and WIRC/WINP pairing
